Interface


Interface

Stabilized power supply with input from 85 to 265 Vac and 24 Vdc output, protected against overvoltage, overcurrent and overheating

-------------------------------------------------- ------------------------------

Power Supplies for intrinsically safe F130P for plants in areas at risk of explosion certificates: building intrinsically safe approval
II (1) G D [EEx ia] IIC BAS00ATEX7216 T TUV 99 ATEX 1499 X II 3G EEx n A II T4

-------------------------------------------------- ------------------------------

Intrinsic safety barriers for plants in areas at risk of explosion certificate:
construction intrinsically safe approval
DMT 01 ATEX E 042 X -
II (1) G [Ex ia] IIC, II (1) D [EX iaD], I (M2) [Ex ia] I, II 3G Ex nA IIC T4 [Zone 0] [Ex ia] IIC, [Ex ia ] I, [Ex iaD]
supply 10 to 30 Vdc

-------------------------------------------------- ------------------------------

S - 111 Frequency Converters - current for 4-20 mA outputs with inputs from sensors: REED, NAMUR, PULSE 24 VDC, NPN, PNP, PHOTOELECTRIC

-------------------------------------------------- ------------------------------

S- 112 Repeaters-dividers from 1 to 256, with adjustment of the duration of the output signal from 50 to 1000 mS. Sensor inputs: REED, NAMUR, PULSE 24 VDC, NPN, PNP, PHOTOELECTRIC

GALLERY

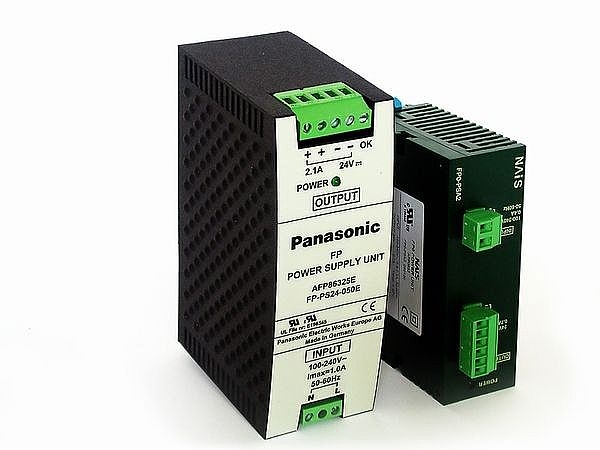

STABILIZED POWER SUPPLY

STABILIZED POWER SUPPLY

intrinsically safe POWER SUPPLY

intrinsically safe POWER SUPPLY

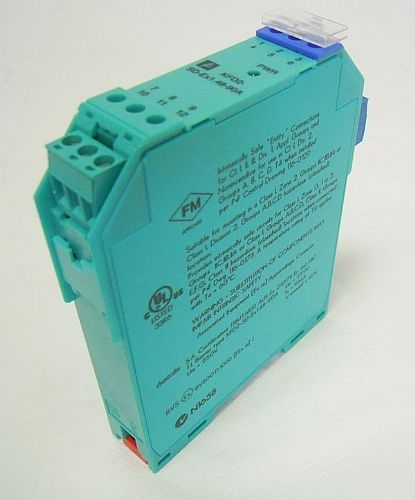

Intrisic Safety  Barrier

Intrisic Safety Barrier

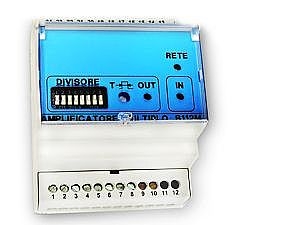

REPEATER - DIVISOR

REPEATER - DIVISOR

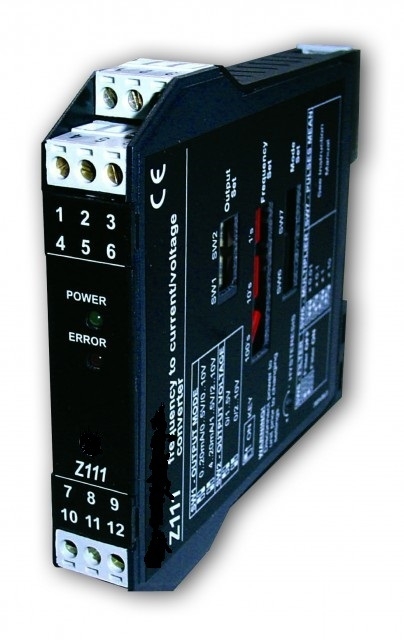

FREQUENCY - CURRENT INTERFACE 24Vac-Vdc

FREQUENCY - CURRENT INTERFACE 24Vac-Vdc

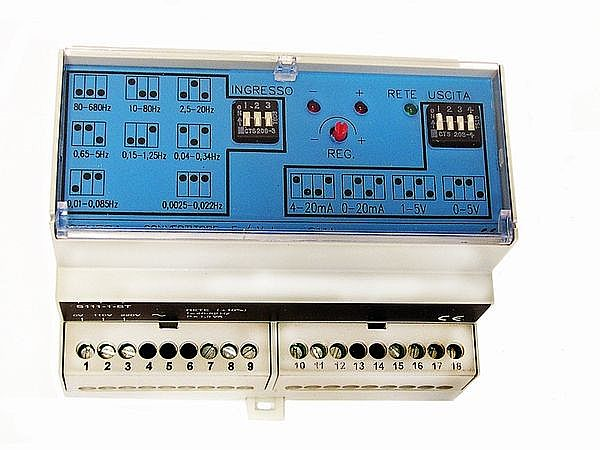

FREQUENCY - CURRENT CONVERTER S 111   110/220 Vac

FREQUENCY - CURRENT CONVERTER S 111 110/220 Vac

DATASHEET

REPEATING/DIVISOR S112 HANDBOOK

CONVERTER F/I S111 110-220 Vac HANDBOOK
