KMU 20 for foods


KMU 20 for Foods

Specifically studied flow meters for alimentar use. They use materials approved for this use, according to the International Rules, they are compatible with the temperature and the products necessary to the sanitization, they are equipped with the more diffused etchings in the Food sector

Built with the diameters from DN25 to DN 100. It's completely built in AISI 304 Stainless steel and internally cover with PTFE. The etchings can be DIN 11851 type or Clamp. In both cases the liquid comes in contact with the metallic part of the etching that assures its grounding.

The electrodes, in the standard version are made of AISI 316L Stainless steel. For particular works in the chemical sector they can be furnished in differents materials.The protection rank is IP 68 for a permanent immersion depht in water of 1,5 meter, thanks to a weld sheet steel structure that contains coils and electrodes.

GALLERY

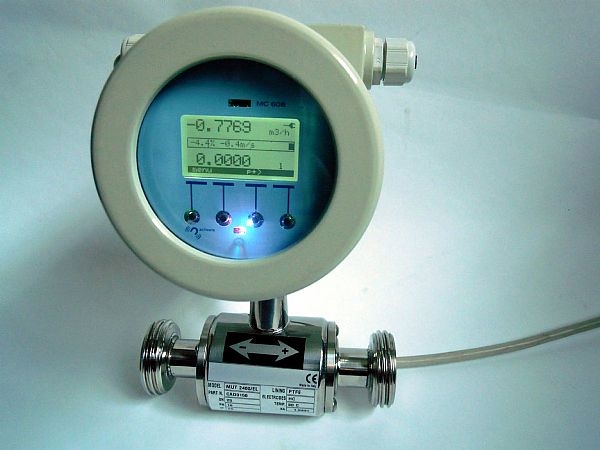

KMU 20 For Foods DIN dn 50

KMU 20 For Foods DIN dn 50

KMU 20 For Foods DIN dn 25 with settable head

KMU 20 For Foods DIN dn 25 with settable head
