Centrifugal Pumps


CENTRIFUGAL PUMPS

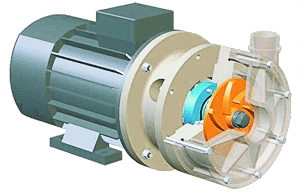

The series of pumps and CENTRIFUGAL TRANSFER DRUMS are long used in the areas where they are used in corrosive products. They are manufactured in various materials such as PVC-PVDF AISI-316. »Centrifugal pump horizontal centrifugal pumps in resin are high efficiency pumps driven by electric motor in direct drive (max 3000 rev / min) for the transfer and / or rapid emptying of the fluid, with flow rates from 6 to 75 m3 / hour.
Their special open-impeller design allows the continuous pumping of fluids even with very dirty apparent viscosity up to 500 cps (at 20 ° C), with any suspended solid parts of small dimensions.
They are available in two versions with different internal mechanical seal as a function of their use, TL (lip seal polymer for use are lighter;) and TS (bellows seal PTFE rings with silicon carbide and ceramic: for use the heaviest and with very dirty fluids). "These pumps drum transfer pumps drum transfer portable, especially suitable for pumping corrosive fluids, working immersed in the fluid and are devoid of internal mechanical seals.
Their special shape has been specially designed to collect the stem any fluid leakages.
Available with electric motor or with pneumatic motor perfectly interchangeable, these pumps have an open impeller that allows continuous pumping of clean corrosive liquids having apparent viscosity up to 600 cps with 500-watt motor and tire (at 20 ° C) and up to 900cps with motor 800 watts (at 20 ° C).
Versions driven by electric motor, TR-EL series are also equipped with a safety switch to prevent accidental restart after power failure

GALLERY

CENTRIFUGAL PUMPS

CENTRIFUGAL PUMPS

DATASHEET

CENTRIFUGAL PUMPS HANDBOOK


PUMPS DRUM TRANSFER

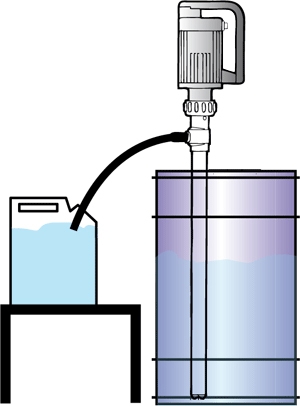

These pumps drum transfer portable, especially suitable for pumping corrosive fluids, working immersed in the fluid and are devoid of internal mechanical seals.
Their special shape has been specially designed to collect the stem any fluid leakages.
Available with electric motor or with pneumatic motor perfectly interchangeable, these pumps have an open impeller that allows continuous pumping of clean corrosive liquids having apparent viscosity up to 600 cps with 500-watt motor and tire (at 20 ° C) and up to 900cps with motor 800 watts (at 20 ° C).
Versions driven by electric motor, TR-EL series are also equipped with a safety switch to prevent accidental restart after a power failure

GALLERY

PUMPS DRUM TRANSFER

PUMPS DRUM TRANSFER

DATASHEET

Pump drums tranfer Handbook
