Batch control DOSAX 2010


Batch control DOSAX 2010

Backlit LCD display with 2 lines - 16 characters
Batch controller with 6 digits (incremental or decremental)
Set all keyboard data in scratch-resistant polycarbonate
Built-in 8-digit resettable totalizer
Totalizer historic 10-digit non-resettable
Indicator of the instantaneous rate
Memory of the data stored in EEPROM
Buttons to start and stop manual emergency
Calibration of the quantity measured in percentage
Low capacity alarm level or absence of product
Maximum flow meter alarm protection
Input for counting sensors HALL SWITCH-PROXIMITY PNP-
Factored pulse output for sending to other equipment
A pair of contacts (voltage free) for pump control valve max. 1A
Serial communication port RS-232 bi-directional, allowing the read / write (print-on demand) of production data
Power supply 24 VAC
Running into custody in accordance with DIN 72 x 144 x 155
The instrument described is compliant with EN55011, EN61000-3-2, IEC 1000-4-2, IEC1000-4-4.


GALLERY

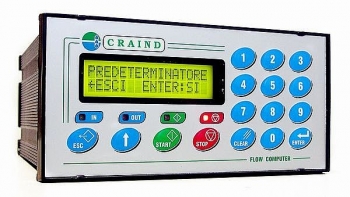

Batch control mod. DOSAX 2010

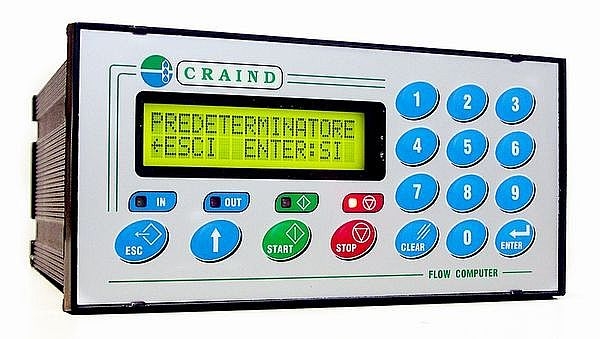

Batch control mod. DOSAX 2010
