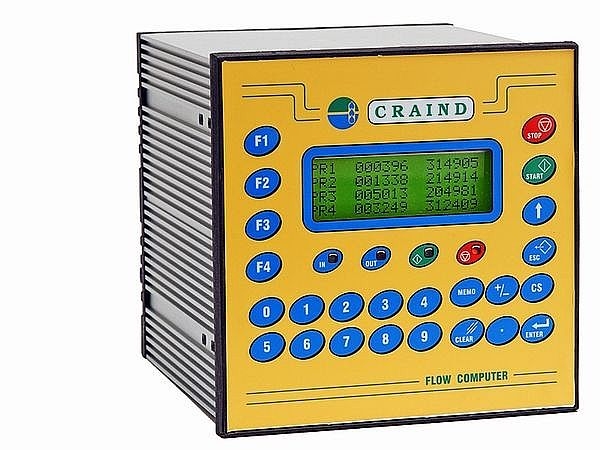

Batch control mod. DOSAX 2020-2030-2040


Batch control mod. DOSAX 2020-2030-2040

32-bit microprocessor logic
Backlit LCD display with 4 lines - 20 characters
Choosing the type of dosage: single, simultaneous or cascading
From 2 to 4 Pre-setting 6-digit (incremental or decremental)
Set all keyboard data in scratch-resistant polycarbonate
From 2 to 4 to 8-digit resettable totalizers incorporated
From 2 to 4 total historic 10-digit non-resettable
From 2 to 4 indicators of instantaneous flow
Memory of the data stored in EEPROM
Buttons to start and stop manual emergency
Simultaneous views of the set values ​​and the measured quantities
Calibrations of the quantities measured in percentage
Alarms minimum flow or absence of products
Alarms maximum flow meter protection
Inputs for counting sensors REED - HALL-PROXIMITY PNP-
Factored pulse outputs for sending to other equipment
From 2 to 4 contacts (voltage) to control dosing max. 1 A
Power supply 24 VAC
Running in DIN box 144 x 144 x 155
The instrument described is in conformity with CE standards EN 55011, EN 61000-3-2, IEC 1000-4-2, IEC 1000-4-4


GALLERY

Batch control mod. DOSAX 2020 - 2030 - 2040

Batch control mod. DOSAX 2020 - 2030 - 2040

DATASHEET

DOSAX 2020-2030-2040 Handbook
