Batch control mod. F130P ATEX


Batch control mod. F130P ATEX

The instrument F130P is a batch control 7-digit, resettable totalizer with 1 to 7 digits, a 11-digit non-resettable. It is designed to be mounted directly on the meter or in proximity to it.
Can be connected to explosion proof box containing service functions and power. It can be equipped with built-in lithium batteries that allow you to install it even in hazardous environments without the need for external power. Lithium batteries allow the instrument a range of about five years, after which time the condition of the batteries will be shown on the display to the operator who will be able to replace them without difficulty. 8-28 VDC external power supply. It is equipped with 2 transistor outputs for 2-stage batch or transmission pulse at a distance.

Specifications:

Certifications
ATEX, IECEx
EN 60079-0 EN 60079-11 EN 60079-26 EN 61241-11
II 1 G Ex ia IIB / IIC T4 Ga
II 1 D Ex ia IIIC T100 °C Da IP6x
Battery power internal or external loop (DC)
Protection IP 67 (NEMA 4)
Fully programmable
Compliance with standards: EN 50081-1 EN 50081-2 EN 50082-1 ​​EN 50082-2




GALLERY

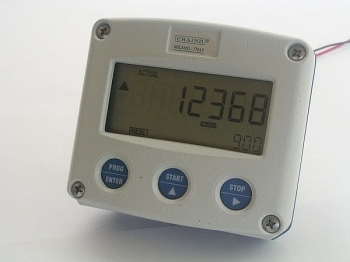

Batch control F130P ATEX

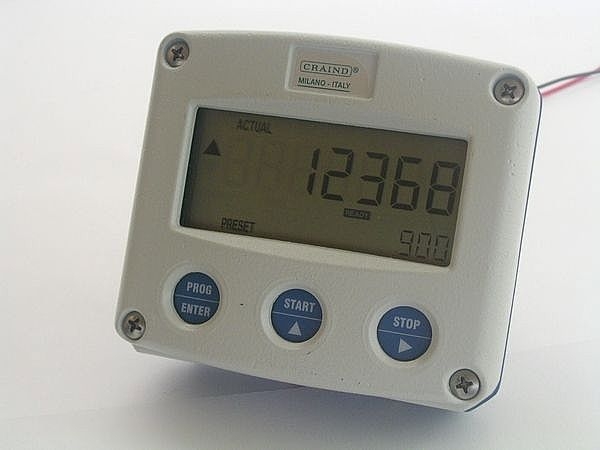

Batch control F130P ATEX
