Totalizator F014 P - F110P ATEX


Totalizator F014 P - F110P ATEX

The intrinsically safe instruments F014P and F110P incorporate resettable totalizer 1 to 7 digits, a 11-digit non-resettable and an indicator of the instantaneous flow rate. It is designed to be mounted directly on the flow meter or in proximity to it. It features built-in lithium battery that allow you to install it even in hazardous environments without the need for external power. In the version with output 4 - 20 mA an adjustable digital filter allows to obtain a better stability of reading. The built-in lithium battery allows the instrument a range of about five years, after which time the low battery condition will be shown on the display to the operator who will be able to replace it without difficulty. The instrument can be powered alternatively by loop 4 - 20 mA or via an external power source.

Specifications:

-mesures 120mm (h) x 130 (l) x 75 (d)

Certifications F014P
ATEX , IECEx, FM and CSA
EN 60079-0 EN 61241-0 EN 60079-11 EN 60079-26 EN 61241-11
II 1 G Ex ia IIC T4
II 1 D Ex iaD 20 IP 65/67 T 100 ° C
Ga Ex ia IIC T4
Ex iaD 20 IP 65/67 T 100 ° C

Certifications F110P
ATEX , IECEx
EN 60079-0 EN 60079-11 EN 60079-26 EN 61241-11
II 1 G Ex ia IIB / IIC T4 Ga
II 1 G Ex ia IIIC T100 ° C Da IP6x

Power supply by internal battery, loop power internal or external (DC)
Protection IP 67 (NEMA 4)
Fully programmable
Output 4-20 but (only F110P)






GALLERY PRODOTTO

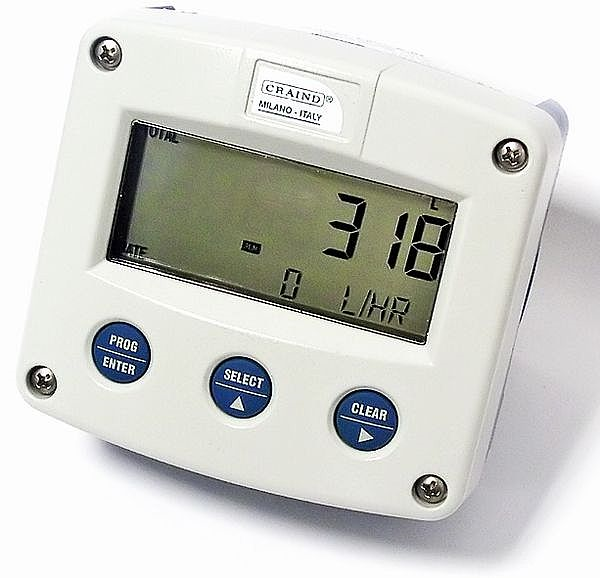

TOTALIZZATOR F014P ATEX

TOTALIZZATOR F014P ATEX

TOTALIZZATOR F110P ATEX  with 4-20 mA output

TOTALIZZATOR F110P ATEX with 4-20 mA output
