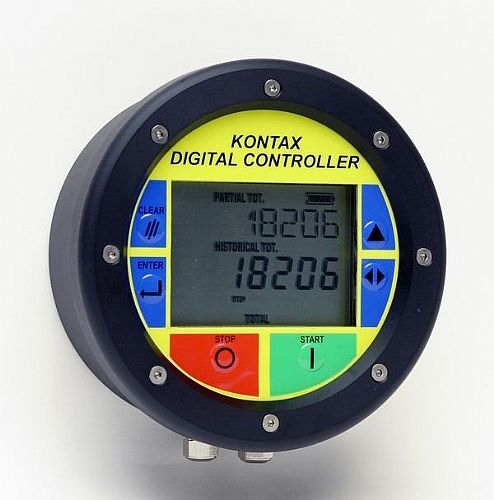

Totalizators mod. Kontax KFC


Totalizators mod. Kontax KFC

Specifications:

LCD display 68 x 50 mm digit height 10 mm - 18 symbols
setting all the data from the keyboard in polycarbonate
7-digit resettable totalizer
8-digit non-resettable totalizer
display flow rate in liters / h
alarm indications to min. and max flowrate.
calibration coefficient in percentage
decimal point setting
parameters set-up password-protected
inputs for REED switch
inputs for powered sensors HALL/PNP-NPN or through
electronic expansion 12-24 Vdc/Vca (on request)
factored pulse output in engineering units
duration of the output signal can be set
Low battery indication
retention of the basic parameters of the set-up during battery change
power supply. 2 BATTERY LITHIUM 3.6V
AA or 12-24 Vac / dc
execution in the PVC casing IP 65
dimensions Ø 130 x 52 mm




GALLERY PRODOTTO

Totalizators mod. Kontax KFC

Totalizators mod. Kontax KFC

Datasheet

Terminal board KFC with expansion
