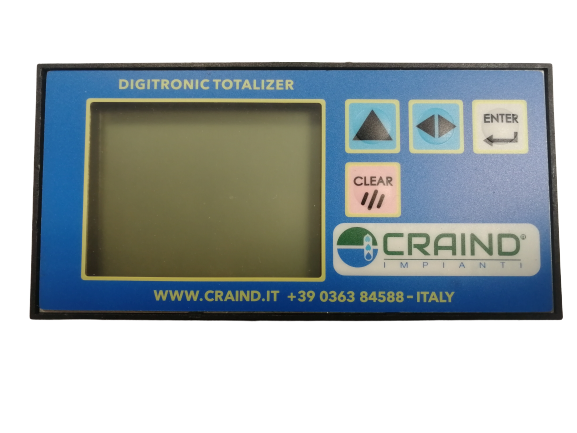

DIGITRONIC TOTALIZER

Digitronic Totalizer

LCD display 68 x 50 mm digit height 10 mm - 18 symbols, backlight on request
setting all the data from the keyboard in polycarbonate
7-digit resettable totalizer
8-digit non-resettable totalizer
display flow rate in liters / h
alarm indications to min. and max flowrate.
calibration coefficient in percentage
decimal point setting
parameters set-up password-protected
inputs for REED switch
inputs for powered sensors HALL/PNP-NPN 24 Vdc
factored pulse output in engineering units
duration of the output signal can be set
retention of the basic parameters of the set-up during power loss
power supply. 12-24 Vac / dc
execution in alluminium casing for front panel mounting
dimensions Ø 144x72x35 mm
