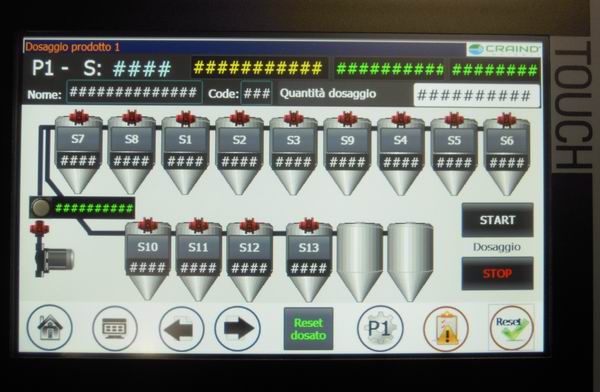

Touch screen batch meter for recipes F3 - F6

  • controlled by interally built microchip
  • TFT LCD 65.356 colors analogic and resistive touch screen display - 16 bit resolution - 320 x 240 pixel (QVGA) viewing area: 3,5"
  • alphanumeric virtual keyboard data setting
  • 6 digits plus 2 decimals dosing ammount setting
  • single or simultaneous 3-6 products (according to the requested kind) dosing function
  • extra sending function till 5 blenders for each product
  • programmable recipe dosing function
  • number and product name setting function (max 10 alphanumeric fonts)
  • measuring unit setting function
  • number and product name setting 50 recipes max (max 10 alphanumeric fonts)
  • 3-6 products recipe (according to the requested kind) in total selectable 20 times max
  • settable waiting time function from a product to the following from 1 sec to 98 min

  • 3 calibrationfactors storage for product according to viscosity and flow (low-medium-high)
  • 5 digits istantaneous flow visualization in liters/hour
  • minimum and maximum flow alerts with automatic dosing stop
  • n°1 10 digits partial resettable totalizator per product
  • n°1 10 digits not resettable historical totalizator per product
  • daily operation with data and hour on SD card historical archives
  • data trasmission through ports: ETHERNET, RS232, standard
  • digital imputs: flow meter pulses (reed – pnp – HALL effect , PROXIMITY – remote start/stop)
  • control valve and pump otuputs per product relè 2 A 250 Vca / 30 Vcc max
  • instrument voltage supply 24 Vcc
  • CR240 model 3V litium backup data battery, likely duration 7 years to 25 °C
  • working temperature from 0 a 50 °C
  • protection grade IP66– NEMA4X
  • dimensions: L 109 x H 114,1 x D 59,6 mm
